In the rapidly evolving landscape of Thailand’s Industry 4.0, precision and reliability are no longer optional—they are the baseline for survival. At the heart of high-performance machinery lies a critical component that often dictates the speed and accuracy of the entire production line: the Linear Motion (LM) Guide. Among the various configurations available, the SR LM Guide Bearing has emerged as a preferred solution for engineers seeking to push the boundaries of mechanical efficiency.
What is an SR LM Guide Bearing? Defining the Radial Standard
The SR LM Guide Bearing is a specialized type of linear motion guide designed primarily for applications requiring high rigidity in the radial direction. Unlike traditional guides that may prioritize equal load-bearing in all four directions, the SR series is engineered with a lower profile and a contact angle that excels at supporting heavy loads acting perpendicular to the rail.

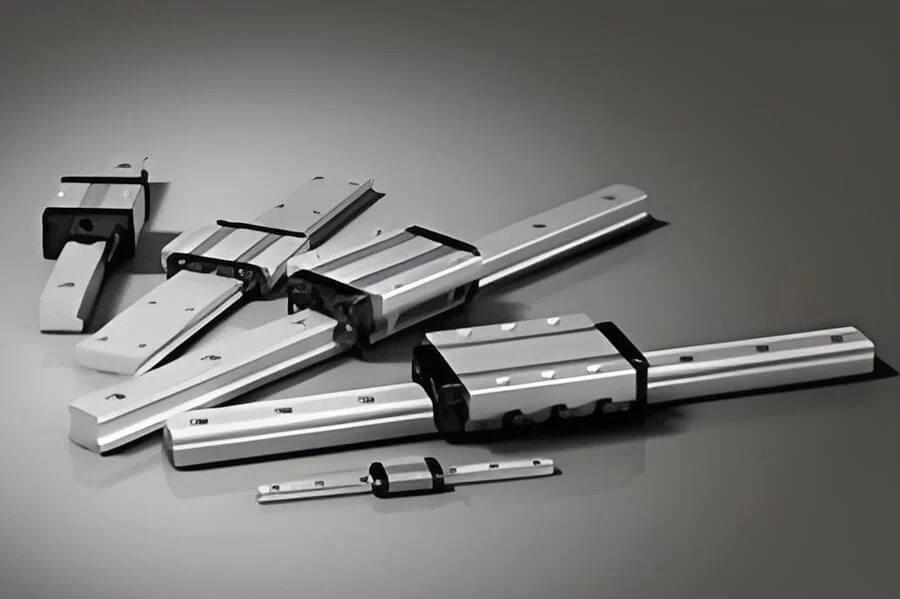

Structurally, it consists of a precision-ground rail and a bearing block containing multiple rows of recirculating steel balls. This specific design allows for a compact installation height, making it the “gold standard” for compact machinery, high-precision measuring instruments, and any system where vertical space is at a premium but stability cannot be sacrificed.
Why Does Choosing the Right SR LM Guide Bearing Impact Maximum Machine Performance?
Engineers and factory managers often face a recurring challenge: vibration and loss of precision when machines operate under high radial loads. Standard guide rails may deflect or experience uneven wear, leading to costly downtime and rejected parts.
The solution provided by I.N.B. Enterprise lies in the specialized Radial Type structure of the SR series. By focusing on radial load capacity, the SR series ensures that even under heavy stress, the motion remains smooth and stable, effectively neutralizing vibrations that could otherwise compromise the integrity of high-precision CNC or automation tasks.
5 Design Secrets of the SR Series That Extend Machine Lifespan
What sets the SR series apart from generic linear guides? It comes down to internal engineering nuances that many overlook:
1. Optimized Ball Arrangement: The SR series utilizes a unique ball contact geometry that distributes pressure evenly across the rail, reducing localized friction and preventing premature pitting.
2. The “Compact Design” Advantage: The SR model features a lower cross-sectional height compared to standard models. This low-center-of-gravity design minimizes the moment of force, resulting in higher rigidity and stability during high-speed travel.
3. Enhanced Self-Alignment: The design incorporates a self-aligning capability that can absorb small mounting errors, preventing the internal stress that usually leads to bearing failure.
4. Specialized Material Metallurgy: I.N.B. Enterprise sources SR guides crafted from high-grade carbon steel with specific heat treatments, ensuring the raceways maintain their hardness over millions of cycles.
5. Advanced Lubrication Pathways: The internal structure is designed to retain lubricant longer and distribute it more effectively across the ball rows, significantly reducing the frequency of maintenance intervals.
How to Choose the Right Bearing: How Do You Know if Your Project Needs an SR Guide?
Choosing between a standard square-type guide and a radial-type SR guide depends largely on your application’s load profile.
When to choose SR: If your application involves heavy loads acting perpendicular to the rail, or if you have height constraints within your machine frame, the SR series is the optimal choice. It is ideal for horizontal mounting where radial stability is paramount.
The I.N.B. Enterprise Edge: Beyond just supplying parts, the team at I.N.B. Enterprise provides technical consultations to ensure the pre-load and accuracy classes are perfectly matched to your specific automation environment, preventing over-engineering costs while guaranteeing performance.
The transition to high-precision automation requires more than just standard components; it demands specialized engineering like the SR series. By prioritizing radial rigidity and a compact, low-profile design, these guides solve the critical industry challenges of vibration and space constraints.
Whether you are optimizing a CNC production line or developing high-accuracy measuring instruments, selecting the right SR LM Guide Bearing is the difference between constant maintenance and seamless efficiency. With the technical expertise of I.N.B. Enterprise manufacturers can leverage these design secrets to ensure their machinery achieves maximum lifespan and peak performance. Utilizing the high-quality SR LM Guide Bearing (ตลับลูกปืน LM Guide SR) is a proven way to stay ahead in the competitive landscape of Industry 4.0.
